테프론씰

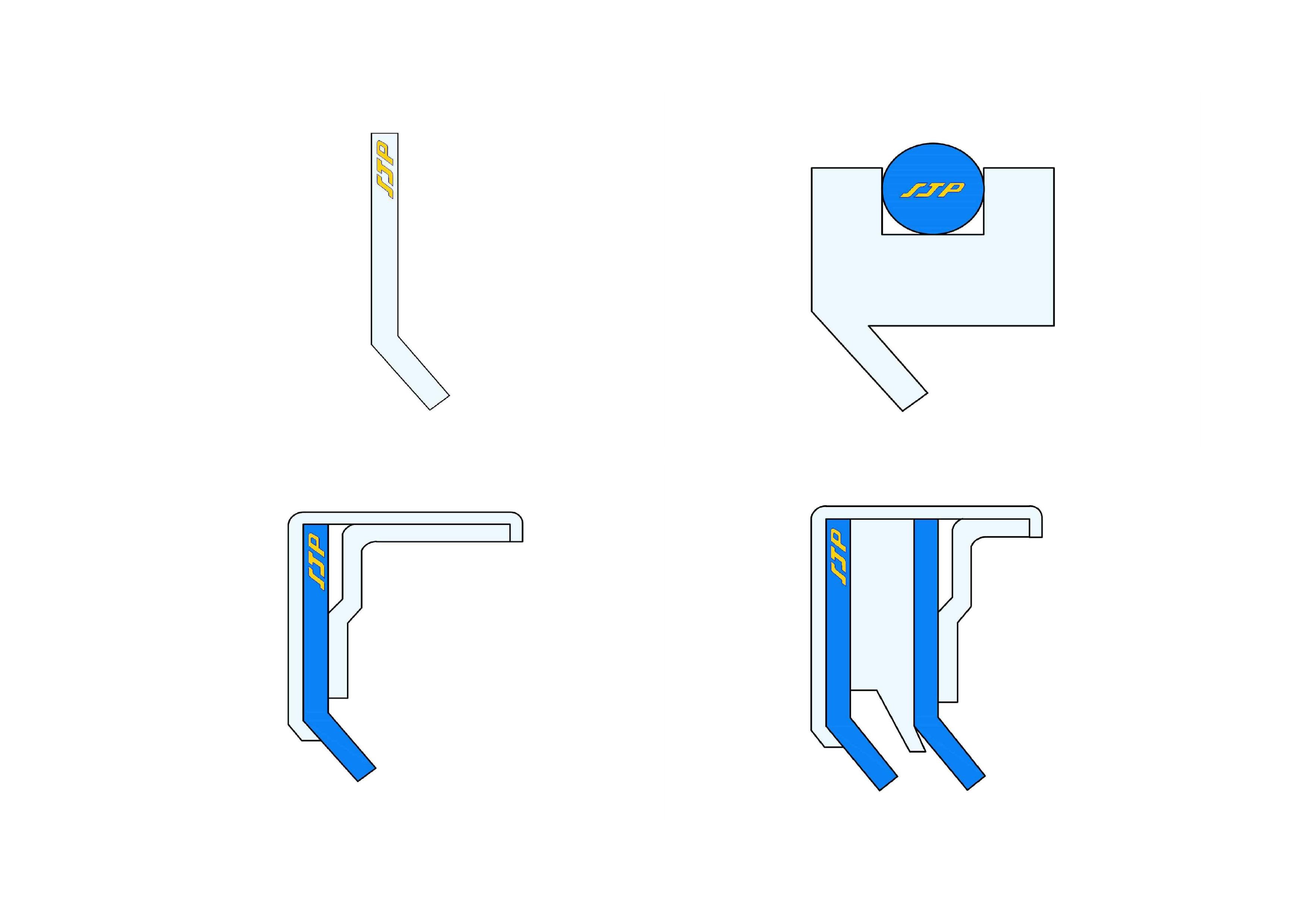

테프론(립씰): 고속, 고온, 고압, 내화학성 및 내구성의 장점을 가지고 있는 테프론 재질을 응용한 립씰은 다양한 분야의 회전부위 및 구조적인 문제로 메카니컬씰의 적용이 어려운 환경 조건에서 사용할 수 있습니다. 매우 작은 공간에도 적용이 가능해 장비의 크기를 최소화 할 수 있습니다.
압력 : 진공~max 30bar
온도 : -90~200(속도에따른 마찰 온도 고려),재질별 온도범위 상이
속도 : max 45m/s
테프론(옴니씰): 진공상태와 같은 무급유 조건일때 습동을 좋게하는 작동유가 없기 때문에 다른 재질의 패킹은 마찰계수가 높아서 사용 불가합니다. 마찰계수가 낮은 테프론 내부에 스프링을 장착하여 스퀴즈씰 역할을 하도록 설계된 패킹입니다.

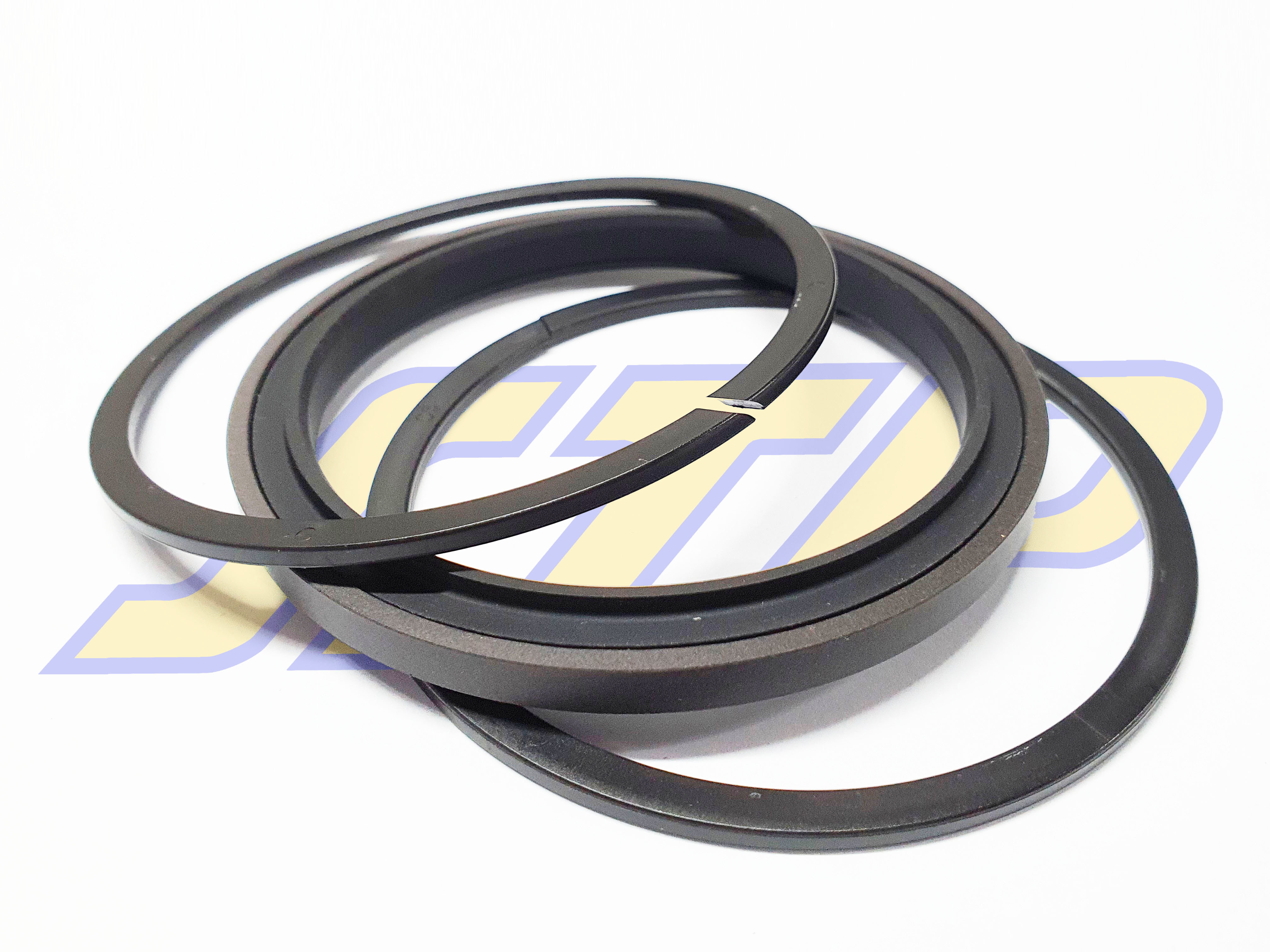

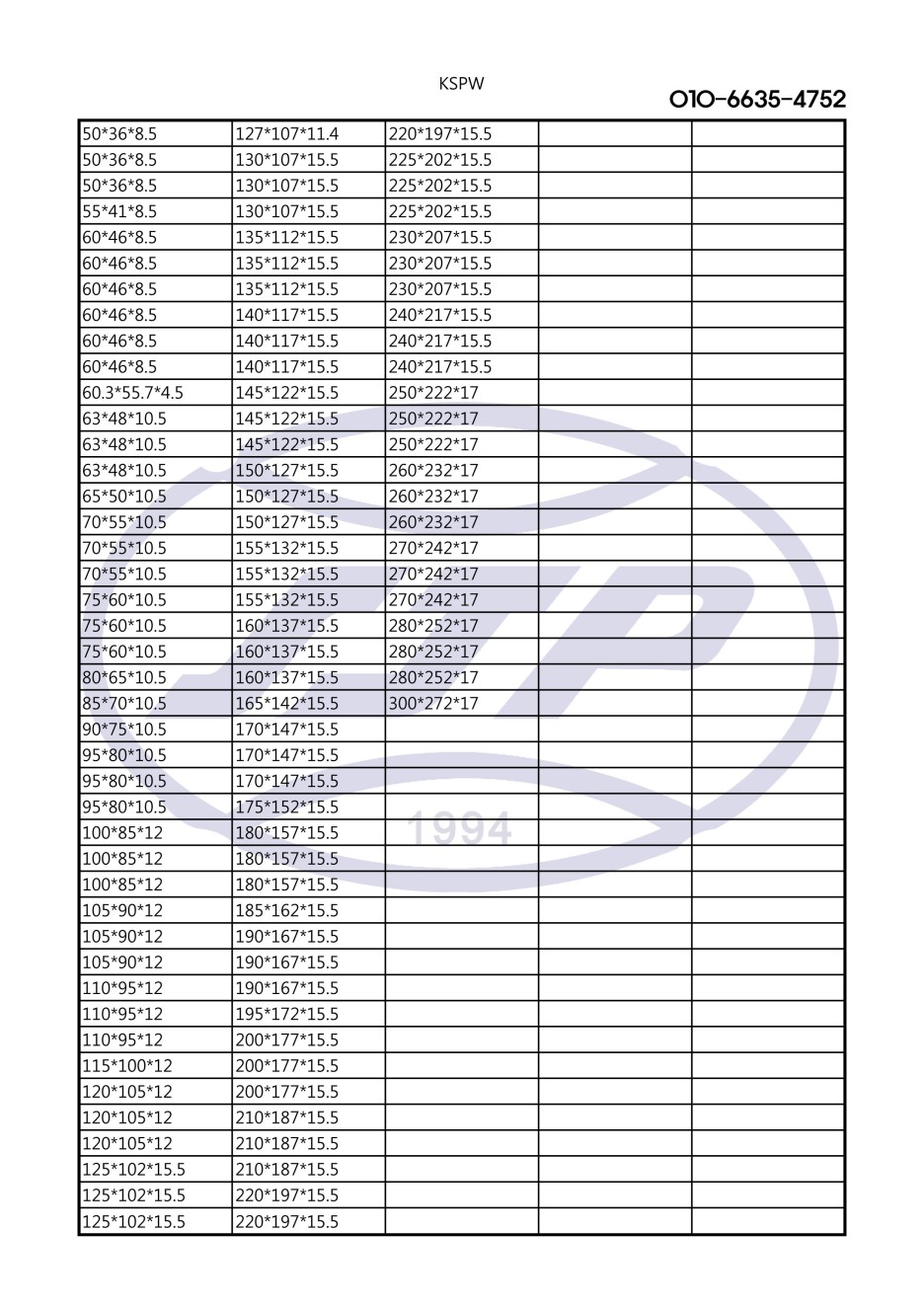

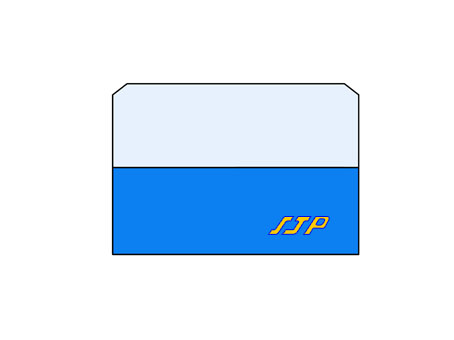

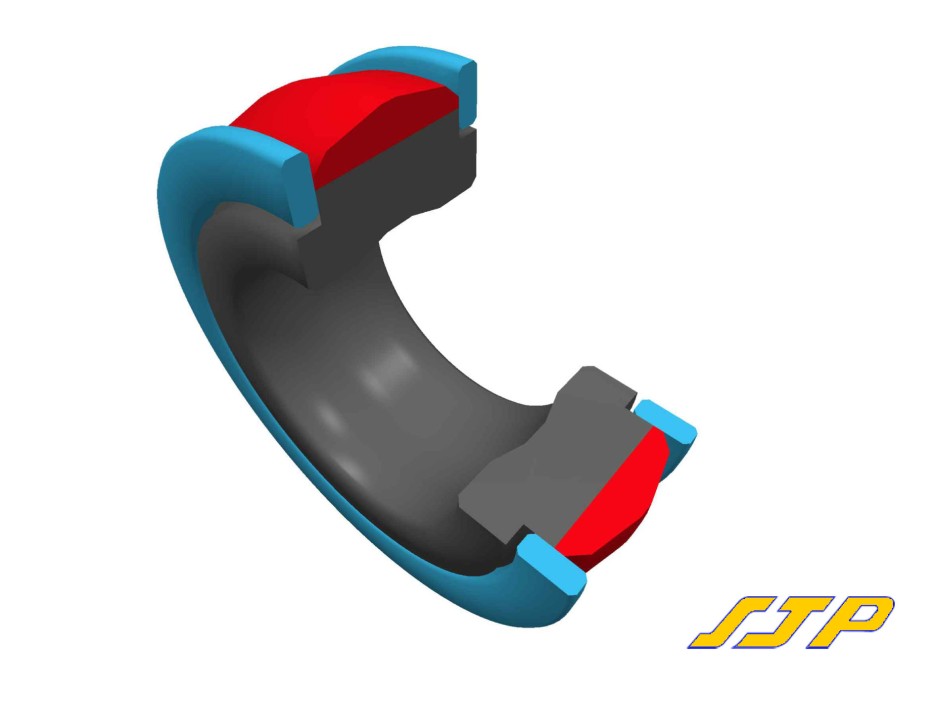

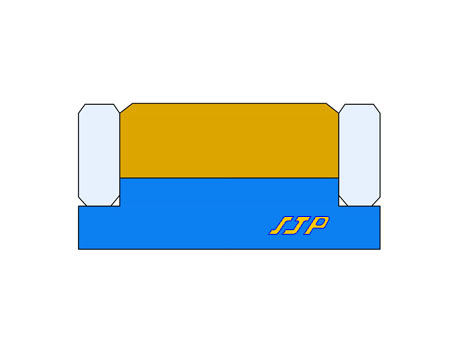

KSPW(SPGW, T735): 테프론과 고무각링, 백업링의 조합씰입니다. 할라이트(영국제)와 국산 재고 보유 중입니다.
유패킹이 뒤틀려버릴 정도의 고압에서도 사용가능하며 테프론이 닳아도 내측 고무 각링이 밀어주어 오랜시간
사용 가능합니다.
KSP(SPG): KSP는 각링과 함께 장착되어 고압과 저압, 고속과 저속,낮은 마찰계수를 요하는 곳 등 여러분야에서 적용될 수 있습니다. 탄성체인 각링은 적당한 눌림률로 테프론링에 힘을 작용시켜 습동면에 압착하여 씰링역할을 효과적으로 수행할 수 있게합니다.
KCP보다 접촉면이 넓어 더 높은 압력에도 적용할 수 있습니다.
.

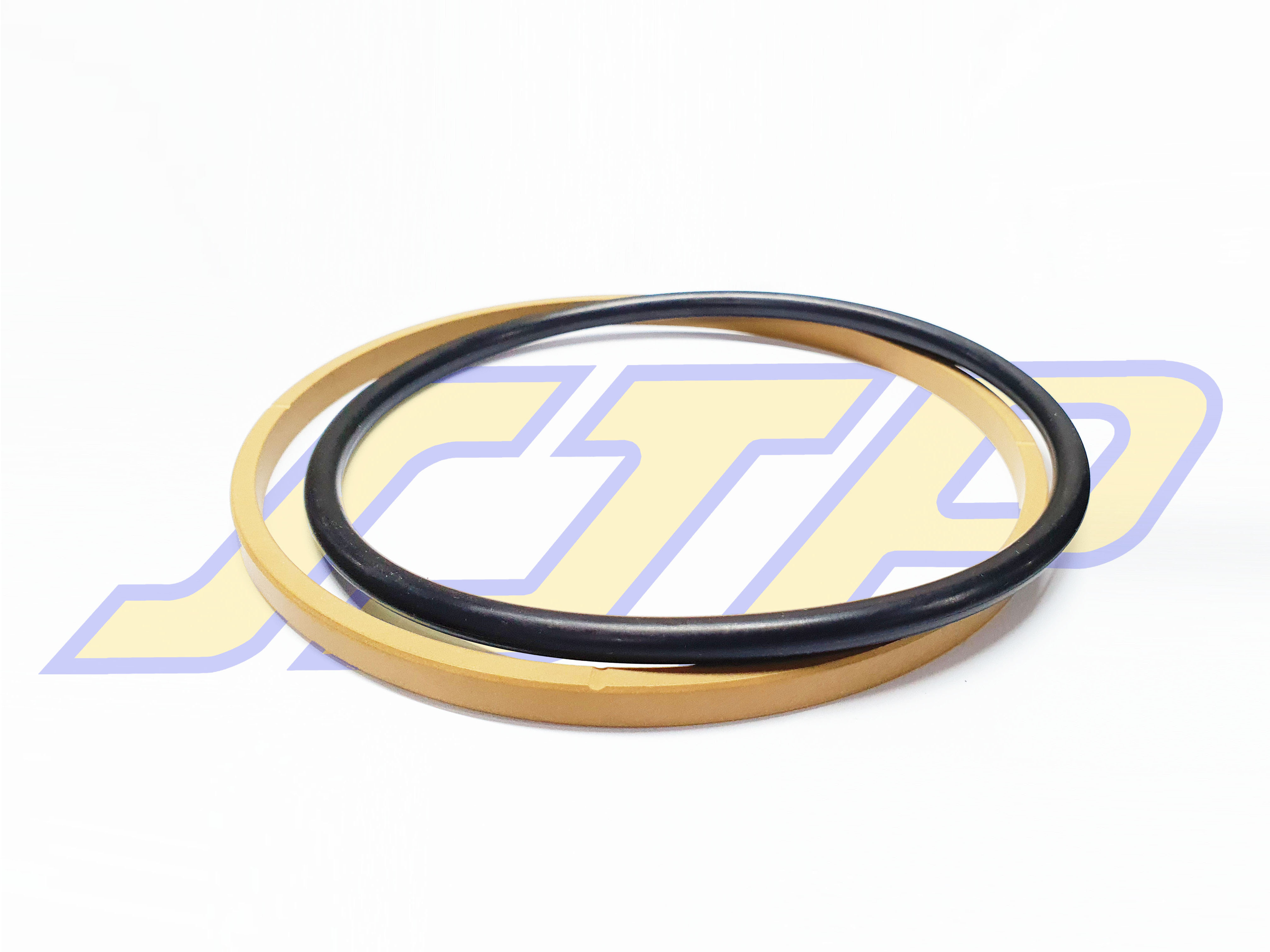

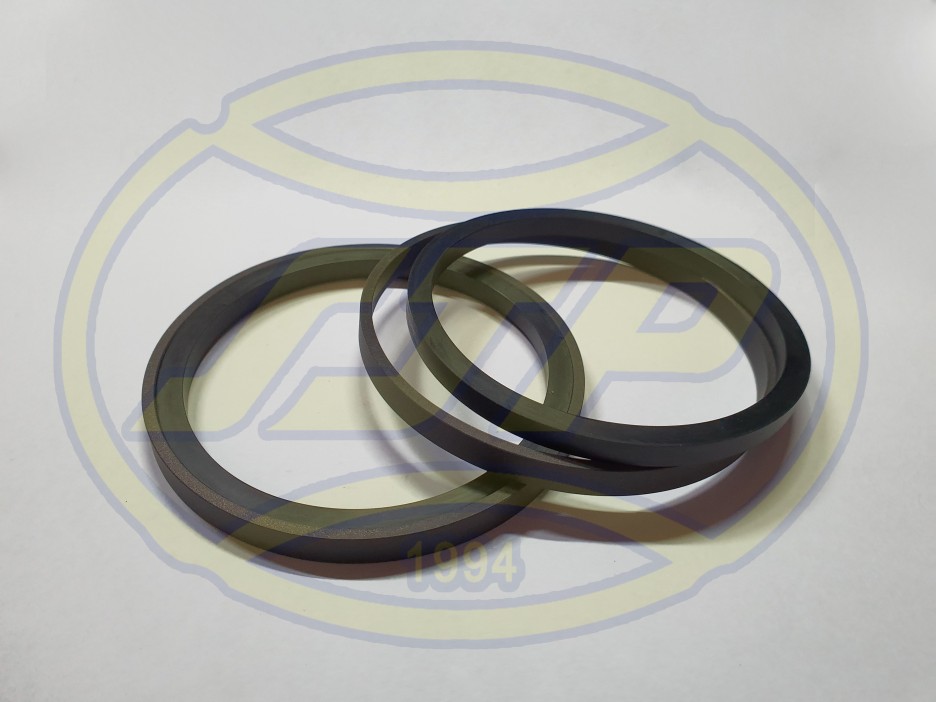

T054: 테프론 글라이드링 / T754: 우레탄 글라이드링

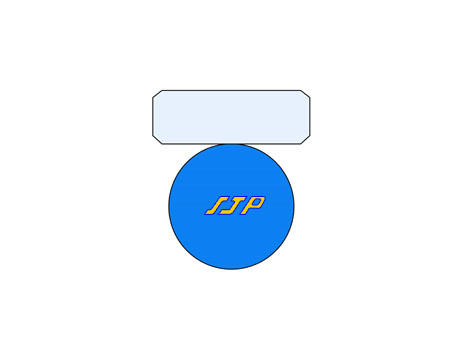

내측에 테프론이 장착되고 외측에서 오링이 밀어주는 형태의 테프론 씰입니다. 테프론 씰의 경우 유패킹이 뒤틀려버릴정도의 고압에서도 사용 가능하며 테프론이 닳은 경우에도 함께 장착되는 오링이 테프론을 밀어주어 오랜시간 사용 가능합니다.
테프론의 경우 장착이 어려워 우레탄 재질로 된 글라이드링을 사용하기도 합니다.
| 테프론글라이드링 외경*내경*두께 | 우레탄글라이드링 외경*내경*두께 |
| T054 40*29*4.2 | T754 32*24.5*3.2 |
| T054 45*34*4.2 | T754 40*29*4.2 |
| T054 50*39*4.2 | T754 45*34*4.2 |
| T054 55*44*4.2 | T754 50*39*4.2 |
| T054 60*49*4.2 | T754 60*44.5*6.3 |
| T054 63*52*4.2 | T754 63*52*4.2 |
| T054 65*54*4.2 | T754 65*49.5*6.3 |
| T054 70*59*4.2 | T754 80*64.5*6.3 |
| T054 70*54.5*6.3 | T754 125*109.5*6.3 |
| T054 75*64*4.2 | T754 150*129.5*8.1 |
| T054 75*59.5*6.3 | T754 170*149*8.1 |
| T054 80*64.5*6.3 | T754 225*204*8.1 |
| T054 90*74.5*6.3 | |
| T054 95*79.5*6.3 | |
| T054 100*84.5*6.3 | |
| T054 105*89.5*6.3 | |
| T054 110*94.5*6.3 | |
| T054 125*109.5*6.3 | |
| T054 125*104*8.1 | |
| T054 130*114.5*6.3 | |
| T054 130*109*8.1 | |
| T054 140*119*8.1 | |
| T054 150*129*8.1 | |
| T054 160*139*8.1 | |
| T054 170*149*8.1 | |
| T054 180*159*8.1 | |
| T054 190*169*8.1 | |
| T054 200*179*8.1 | |
| T054 210*189*8.1 | |
| T054 220*199*8.1 | |
| T054 230*209*8.1 | |
| T054 240*219*8.1 | |
| T054 250*229*8.1 | |
| T054 270*249*8.1 | |
| T054 280*259*8.1 | |
| T054 290*269*8.1 | |
| T054 300*279*8.1 | |
| T054 310*289*8.1 | |
| T054 350*325.5*8.1 |

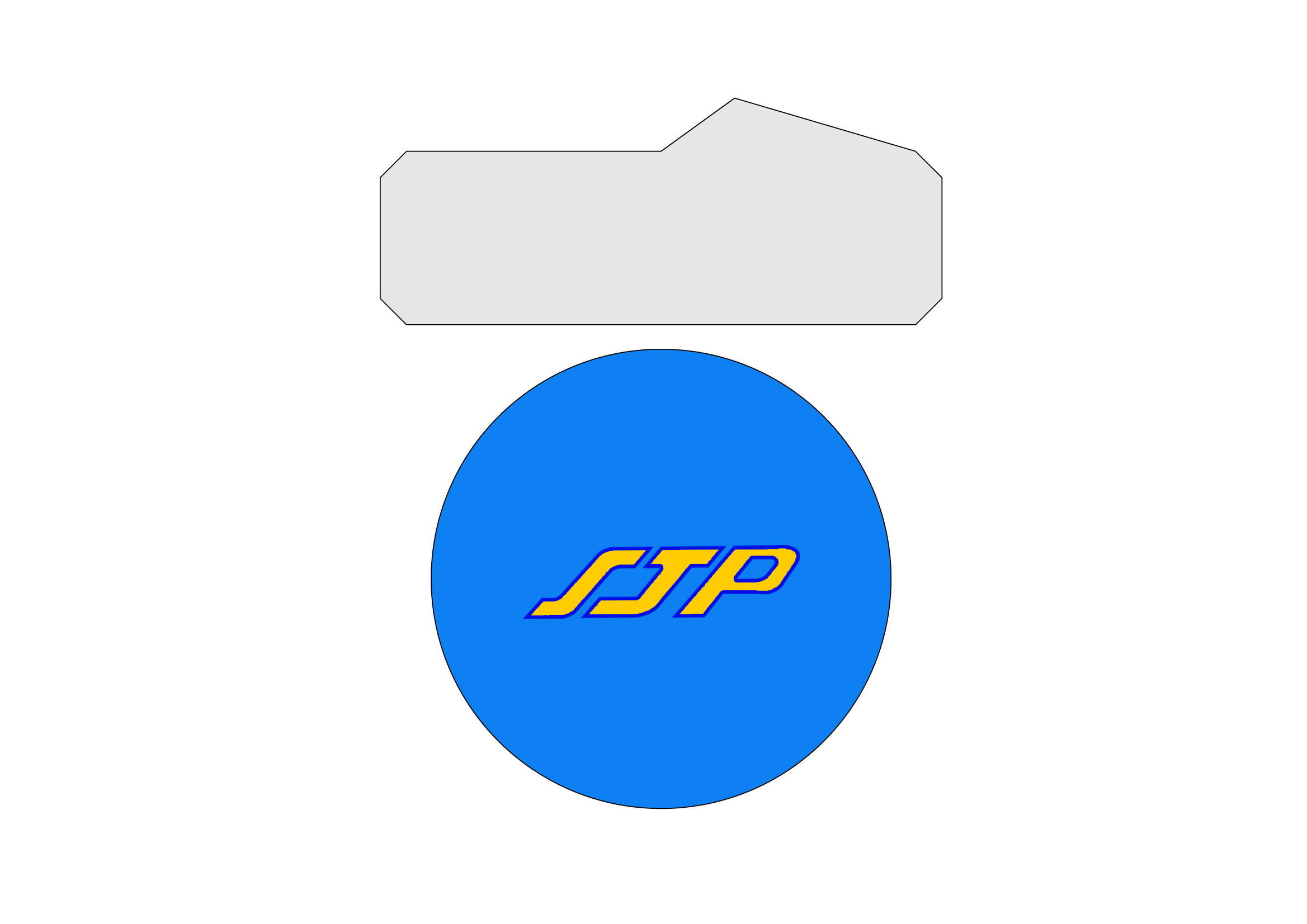

T016(스텝씰): 할라이트 영국제
내측에 테프론이 장착되고 외측에서 오링이 밀어주는 형태의 테프론 씰입니다. 테프론 씰의 경우 유패킹이 뒤틀려버릴정도의 고압에서도 사용 가능하며 테프론이 닳은 경우에도 함께 장착되는 오링이 테프론을 밀어주어 오랜시간 사용 가능합니다.
| 품목명 내경*두께 |
| T016 25*4.2 |
| T016 28*4.2 |
| T016 30*4.2 |
| T016 35*4.2 |
| T016 36*4.2 |
| T016 40*6.3 |
| T016 45*4.2 |
| T016 45*6.3 |
| T016 50*6.3 |
| T016 50*4.2 |
| T016 55*6.3 |
| T016 55*4.2 |
| T016 60*6.3 |
| T016 65*6.3 |
| T016 70*6.3 |
| T016 80*6.3 |
| T016 85*6.3 |
| T016 90*6.3 |
| T016 95*6.3 |
| T016 100*6.3 |
| T016 110*6.3 |
| T016 115*6.3 |
| T016 150*6.3 |
| T016 155*6.3 |
| T016 160*6.3 |
| T016 165*6.3 |
| T016 170*6.3 |
| T016 175*6.3 |
| T016 180*6.3 |
| T016 190*6.3 |
| T016 200*8.1 |
| T016 210*8.1 |
| T016 220*8.1 |
| T016 230*8.1 |
| T016 240*8.1 |

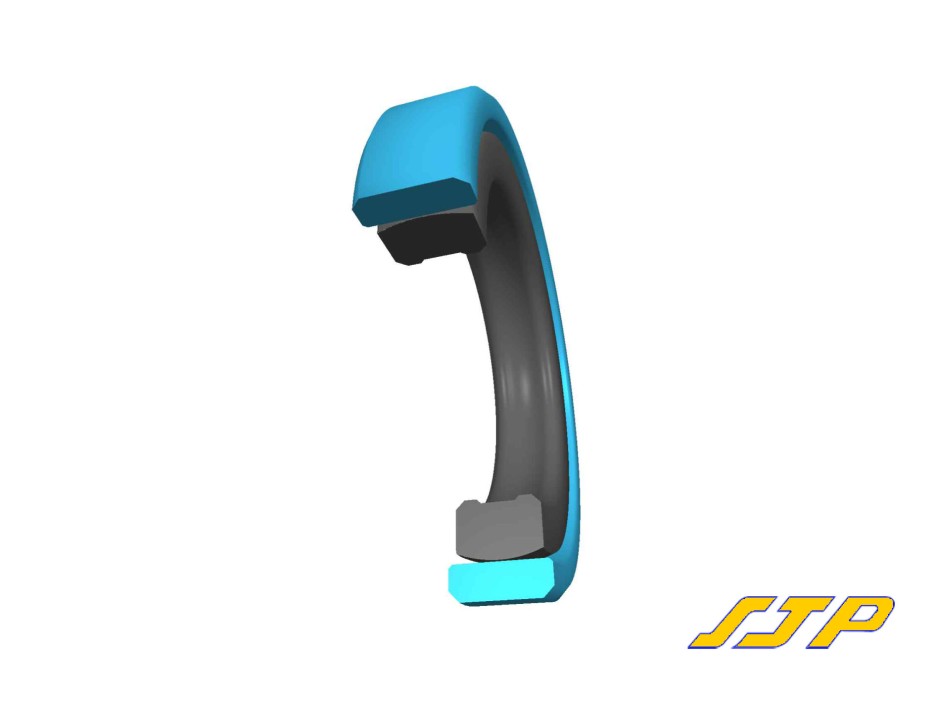

할라이트(HALLITE) 영국메이커에서 나오는 테프론과 고무각링, 백업링의 조합씰입니다.
유패킹이 뒤틀려버릴 정도의 고압에서도 사용가능하며 테프론이 닳아도 내측 고무 각링이 밀어주어 오랜시간
사용 가능합니다.
| 품목명 외경*내경*두께 |
| T735 50*36*9 |
| T735 60*46*9 |
| T735 63*48*11 |
| T735 65*50*11 |
| T735 70*55*11 |
| T735 75*60*11 |
| T735 80*65*11 |
| T735 90*75*10.5 |
| T735 100*85*12.5 |
| T735 105*90*12.5 |
| T735 110*95*12.5 |
| T735 115*100*12.5 |
| T735 120*105*12.5 |
| T735 125*102*16 |
| T735 130*107*16 |
| T735 140*117*16 |
| T735 145*122*16 |
| T735 150*127*16 |
| T735 160*137*16 |
| T735 170*147*16 |
| T735 180*157*16 |
| T735 190*167*16 |
| T735 200*177*16 |
| T735 220*197*16 |
| T735 225*202*16 |
| T735 230*207*16 |
| T735 240*217*16 |
| T735 260*232*17.5 |
| T735 270*242*17.5 |
| T735 280*252*17.5 |
| T735 300*272*17.5 |
| T735 320*292*17.5 |
| T735 330*302*17.5 |
| T735 350*322*17.5 |
| T735 360*332*17.5 |

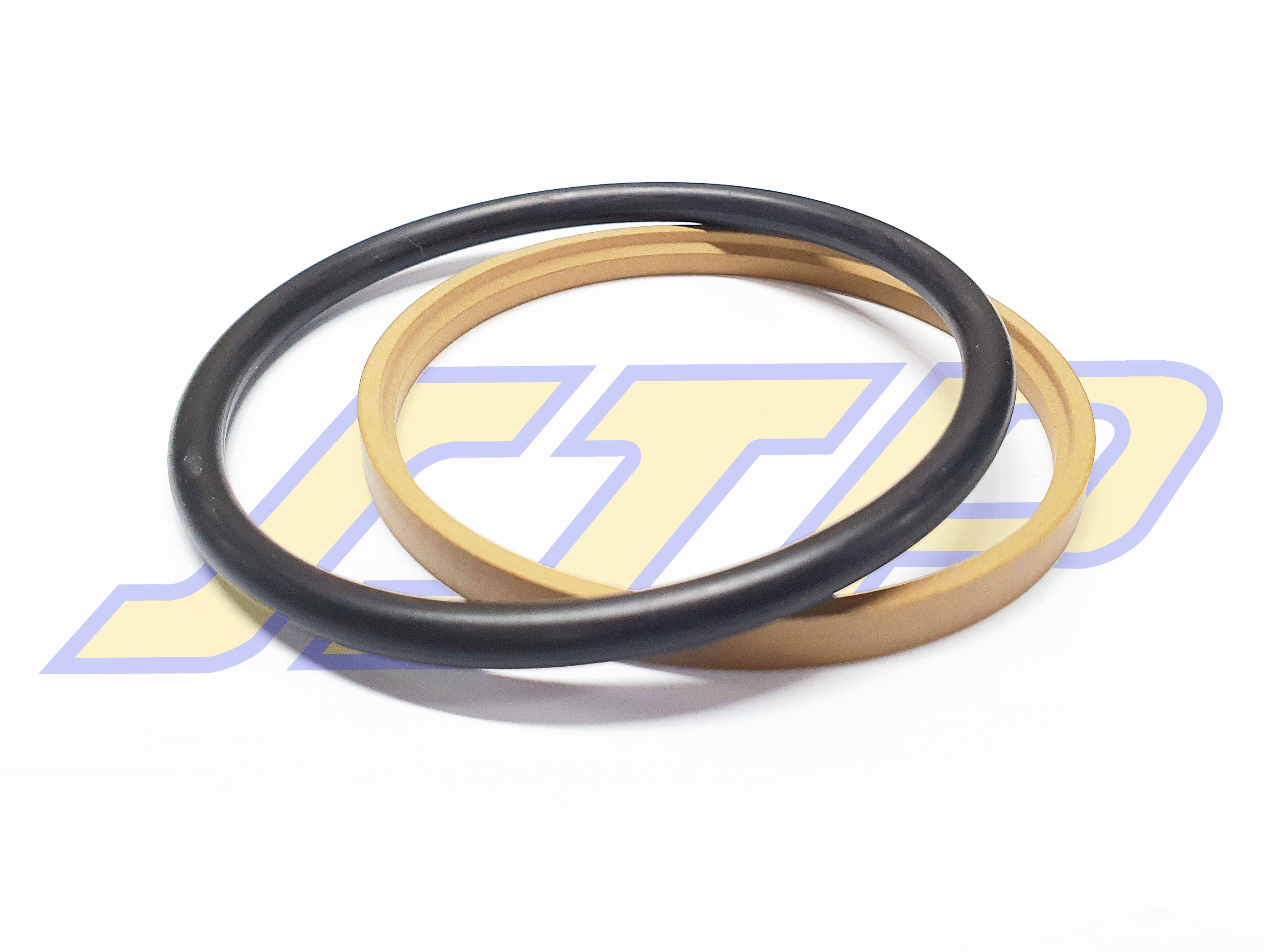

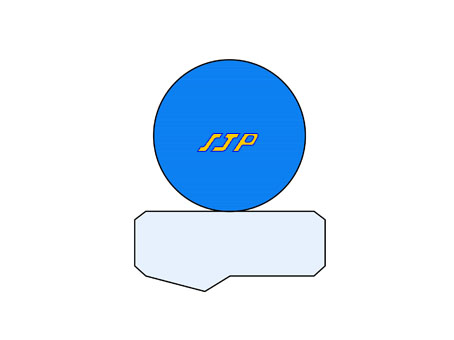

스텝씰(S/S, KSK, T016): 내측에 테프론이 장착되고 외측에서 오링이 밀어주는 형태의 테프론 씰입니다. 오링과 함께 장착되어 고압과 저압, 고속과 저속,낮은 마찰계수를 요하는 곳등 여러 분야에서 적용됩니다. 테프론이 닳은 경우에도 함께 장착되는 오링이 테프론을 밀어주어 오랜시간 사용 가능합니다.
| 품목명 내경*외경*두께 | 부삭(트렐레보그) 품번 |
| KSK 3*7.9*2.2 | RS1300030 |
| KSK 4*8.9*2.2 | RS1300040 |
| KSK 5*9.9*2.2 | RS1300050 |
| KSK 6*10.9*2.2 | RS1300060 |
| KSK 8*12.9*2.2 | RS1500080 |
| KSK 8*15.3*3.2 | RS1300080 |
| KSK 10*14.9*2.2 | RS1500100 |
| KSK 10*17.3*3.2 | RS1300100 |
| KSK 12*16.9*2.2 | RS1500120 |
| KSK 12*19.3*3.2 | RS1300120 |
| KSK 14*18.9*2.2 | RS1500140 |
| KSK 14*21.3*3.2 | RS1300140 |
| KSK 15*22.3*3.2 | RS1300150 |
| KSK 16*23.3*3.2 | RS1300160 |
| KSK 18*25.3*3.2 | RS1300180 |
| KSK 20*27.3*3.2 | RS1500200 |
| KSK 20*30.7*4.2 | RS1300200 |
| KSK 22*29.3*3.2 | RS1500220 |
| KSK 22*32.7*4.2 | RS1300220 |
| KSK 25*32.3*3.2 | RS1500250 |
| KSK 25*35.7*4.2 | RS1300250 |
| KSK 28*38.7*4.2 | RS1300280 |
| KSK 30*40.7*4.2 | RS1300300 |
| KSK 32*42.7*4.2 | RS1300320 |
| KSK 35*45.7*4.2 | RS1300350 |
| KSK 36*46.7*4.2 | RS1300360 |
| KSK 40*50.7*4.2 | RS1500400 |
| KSK 40*55.1*6.3 | RS1300400 |
| KSK 42*52.7*4.2 | RS1500420 |
| KSK 42*57.1*6.3 | RS1300420 |
| KSK 45*55.7*4.2 | RS1500450 |
| KSK 45*60.1*6.3 | RS1300450 |
| KSK 48*58.7*4.2 | RS1500480 |
| KSK 48*63.1*6.3 | RS1300480 |
| KSK 50*60.7*4.2 | RS1500500 |
| KSK 50*65.1*6.3 | RS1300500 |
| KSK 52*62.7*4.2 | RS1500520 |
| KSK 52*67.1*6.3 | RS1300520 |
| KSK 55*65.7*4.2 | RS1500550 |
| KSK 55*70.1*6.3 | RS1300550 |
| KSK 56*66.7*4.2 | RS1500560 |
| KSK 56*71.1*6.3 | RS1300560 |
| KSK 60*70.7*4.2 | RS1500600 |
| KSK 60*75.1*6.3 | RS1300600 |
| KSK 63*73.7*4.2 | RS1500630 |
| KSK 63*78.1*6.3 | RS1300630 |
| KSK 65*80.1*6.3 | RS1300650 |
| KSK 70*85.1*6.3 | RS1300700 |
| KSK 75*90.1*6.3 | RS1300750 |
| KSK 80*95.1*6.3 | RS1300800 |
| KSK 85*100.1*6.3 | RS1300850 |
| KSK 90*105.1*6.3 | RS1300900 |
| KSK 95*110.1*6.3 | RS1300950 |
| KSK 100*115.1*6.3 | RS1301000 |
| KSK 105*120.1*6.3 | RS1301050 |
| KSK 110*125.1*6.3 | RS1301100 |
| KSK 115*130.1*6.3 | RS1301150 |
| KSK 120*135.1*6.3 | RS1301200 |
| KSK 125*140.1*6.3 | RS1301250 |
| KSK 130*145.1*6.3 | RS1301300 |
| KSK 135*150.1*6.3 | RS1301350 |
| KSK 140*155.1*6.3 | RS1301400 |
| KSK 150*165.1*6.3 | RS1301500 |
| KSK 160*175.1*6.3 | RS1301600 |
| KSK 160*180.5*8.1 | RS1101600 |
| KSK 170*185.1*6.3 | RS1301700 |
| KSK 180*195.1*6.3 | RS1301800 |
| KSK 180*200.5*8.1 | RS1101800 |
| KSK 190*205.1*6.3 | RS1301900 |
| KSK 200*220.5*8.1 | RS1302000 |
| KSK 210*230.5*8.1 | RS1302100 |
| KSK 220*240.5*8.1 | RS1302200 |
| KSK 230*250.5*8.1 | RS1302300 |
| KSK 240*260.5*8.1 | RS1302400 |
| KSK 250*270.5*8.1 | RS1302500 |
| KSK 280*300.5*8.1 | RS1302800 |
| KSK 300*320.5*8.1 | RS1303000 |
| KSK 320*340.5*8.1 | RS1303200 |
| KSK 350*370.5*8.1 | RS1303500 |
| KSK 360*380.5*8.1 | RS1303600 |
| KSK 400*420.5*8.1 | RS1304000 |
| KSK 420*440.5*8.1 | RS1304200 |
| KSK 450*470.5*8.1 | RS1304500 |
| KSK 480*500.5*8.1 | RS1304800 |
| KSK 500*520.5*8.1 | RS1305000 |
| KSK 600*620.5*8.1 | RS1306000 |
| 품목명 내경*외경*두께 | 부삭(트렐레보그) 품번 |
| KSK 3*7.9*2.2 | RSK000030 |
| KSK 4*8.9*2.2 | RSK000040 |
| KSK 5*9.9*2.2 | RSK000050 |
| KSK 6*10.9*2.2 | RSK000060 |
| KSK 7*11.9*2.2 | RSK000070 |
| KSK 8*12.9*2.2 | RSK000080 |
| KSK 8*15.3*3.2 | RSK100080 |
| KSK 9*13.9*2.2 | RSK000090 |
| KSK 9*16.3*3.2 | RSK100090 |
| KSK 10*14.9*2.2 | RSK000100 |
| KSK 10*17.3*3.2 | RSK100100 |
| KSK 12*16.9*2.2 | RSK000120 |
| KSK 12*19.3*3.2 | RSK100120 |
| KSK 12.7*17.6*2.2 | RSK000127 |
| KSK 12.7*20*3.2 | RSK100127 |
| KSK 14*18.9*2.2 | RSK000140 |
| KSK 14*21.3*3.2 | RSK100140 |
| KSK 15*19.9*2.2 | RSK000150 |
| KSK 15*22.3*3.2 | RSK100150 |
| KSK 16*20.9*2.2 | RSK000160 |
| KSK 16*23.3*3.2 | RSK100160 |
| KSK 17*21.9*2.2 | RSK000170 |
| KSK 18*22.9*2.2 | RSK000180 |
| KSK 18*25.3*3.2 | RSK100180 |
| KSK 19*29.7*4.2 | RSK200190 |
| KSK 20*27.3*3.2 | RSK100200 |
| KSK 20*30.7*4.2 | RSK200200 |
| KSK 22*29.3*3.2 | RSK100220 |
| KSK 22*32.7*4.2 | RSK200220 |
| KSK 24*31.3*3.2 | RSK100240 |
| KSK 25*32.3*3.2 | RSK100250 |
| KSK 25*35.7*4.2 | RSK200250 |
| KSK 25.4*32.7*3.2 | RSK100254 |
| KSK 25.4*36.1*4.2 | RSK200254 |
| KSK 26*33.3*3.2 | RSK100260 |
| KSK 26*36.7*4.2 | RSK200260 |
| KSK 28*35.3*3.2 | RSK100280 |
| KSK 28*38.7*4.2 | RSK200280 |
| KSK 28.575*35.875*3.2 | RSK100286 |
| KSK 30*37.3*3.2 | RSK100300 |
| KSK 30*40.7*4.2 | RSK200300 |
| KSK 32*39.3*3.2 | RSK100320 |
| KSK 32*42.7*4.2 | RSK200320 |
| KSK 34*44.7*4.2 | RSK200340 |
| KSK 35*42.3*3.2 | RSK100350 |
| KSK 35*45.7*4.2 | RSK200350 |
| KSK 36*43.3*3.2 | RSK100360 |
| KSK 36*46.7*4.2 | RSK200360 |
| KSK 37*44.3*3.2 | RSK100370 |
| KSK 37*47.7*4.2 | RSK200370 |
| KSK 38*48.7*4.2 | RSK200380 |
| KSK 38*53.1*6.3 | RSK300380 |
| KSK 40*50.7*4.2 | RSK200400 |
| KSK 40*55.1*6.3 | RSK300400 |
| KSK 42*52.7*4.2 | RSK200420 |
| KSK 42*57.1*6.3 | RSK300420 |
| KSK 43*53.7*4.2 | RSK200430 |
| KSK 44.4*59.5*6.3 | RSK300444 |
| KSK 45*55.7*4.2 | RSK200450 |
| KSK 45*60.1*6.3 | RSK300450 |
| KSK 48*58.7*4.2 | RSK200480 |
| KSK 48*63.1*6.3 | RSK300480 |
| KSK 50*60.7*4.2 | RSK200500 |
| KSK 50*65.1*6.3 | RSK300500 |
| KSK 50.8*61.5*4.2 | RSK200508 |
| KSK 50.8*65.9*6.3 | RSK300508 |
| KSK 52*62.7*4.2 | RSK200520 |
| KSK 52*67.1*6.3 | RSK300520 |
| KSK 54*69.1*6.3 | RSK300540 |
| KSK 55*65.7*4.2 | RSK200550 |
| KSK 55*70.1*6.3 | RSK300550 |
| KSK 56*66.7*4.2 | RSK200560 |
| KSK 56*71.1*6.3 | RSK300560 |
| KSK 56*76.5*8.1 | RSK400560 |
| KSK 57*72.1*6.3 | RSK300570 |
| KSK 59*69.7*4.2 | RSK200590 |
| KSK 60*70.7*4.2 | RSK200600 |
| KSK 60*75.1*6.3 | RSK300600 |
| KSK 63*73.7*4.2 | RSK200630 |
| KSK 63*78.1*6.3 | RSK300630 |
| KSK 63.5*78.6*6.3 | RSK300635 |
| KSK 65*75.7*4.2 | RSK200650 |
| KSK 65*80.1*6.3 | RSK300650 |
| KSK 67*77.7*4.2 | RSK200670 |
| KSK 69*84.1*6.3 | RSK300690 |
| KSK 70*80.7*4.2 | RSK200700 |
| KSK 70*85.1*6.3 | RSK300700 |
| KSK 70*90.5*8.1 | RSK400700 |
| KSK 72*82.7*4.2 | RSK200720 |
| KSK 73*88.1*6.3 | RSK300730 |
| KSK 75*85.7*4.2 | RSK200750 |
| KSK 75*90.1*6.3 | RSK300750 |
| KSK 76.2*91.3*6.3 | RSK300762 |
| KSK 78*93.1*6.3 | RSK300780 |
| KSK 80*90.7*4.2 | RSK200800 |
| KSK 80*95.1*6.3 | RSK300800 |
| KSK 80*100.5*8.1 | RSK400800 |
| KSK 82.5*97.6*6.3 | RSK300825 |
| KSK 83*93.7*4.2 | RSK200830 |
| KSK 85*95.7*4.2 | RSK200850 |
| KSK 85*100.1*6.3 | RSK300850 |
| KSK 85*105.5*8.1 | RSK400850 |
| KSK 89*104.1*6.3 | RSK300890 |
| KSK 90*100.7*4.2 | RSK200900 |
| KSK 90*105.1*6.3 | RSK300900 |
| KSK 90*110.5*8.1 | RSK400900 |
| KSK 92*102.7*4.2 | RSK200920 |
| KSK 92*107.1*6.3 | RSK300920 |
| KSK 95*105.7*4.2 | RSK200950 |
| KSK 95*110.1*6.3 | RSK300950 |
| KSK 100*110.7*4.2 | RSK201000 |
| KSK 100*115.1*6.3 | RSK301000 |
| KSK 100*120.5*8.1 | RSK401000 |
| KSK 101.6*116.7*6.3 | RSK301016 |
| KSK 104.7*119.8*6.3 | RSK301047 |
| KSK 105*120.1*6.3 | RSK301050 |
| KSK 105*125.5*8.1 | RSK401050 |
| KSK 110*120.7*4.2 | RSK201100 |
| KSK 110*125.1*6.3 | RSK301100 |
| KSK 110*130.5*8.1 | RSK401100 |
| KSK 115*130.1*6.3 | RSK301150 |
| KSK 120*135.1*6.3 | RSK301200 |
| KSK 120*140.5*8.1 | RSK401200 |
| KSK 125*140.1*6.3 | RSK301250 |
| KSK 125*145.5*8.1 | RSK401250 |
| KSK 125.4*140.5*6.3 | RSK301254 |
| KSK 127*142.1*6.3 | RSK301270 |
| KSK 130*145.1*6.3 | RSK301300 |
| KSK 130*150.5*8.1 | RSK401300 |
| KSK 132*147.1*6.3 | RSK301320 |
| KSK 135*145.7*4.2 | RSK201350 |
| KSK 135*150.1*6.3 | RSK301350 |
| KSK 137*152.1*6.3 | RSK301370 |
| KSK 138*153.1*6.3 | RSK301380 |
| KSK 140*150.7*4.2 | RSK201400 |
| KSK 140*155.1*6.3 | RSK301400 |
| KSK 140*160.5*8.1 | RSK401400 |
| KSK 140.5*155.6*6.3 | RSK301405 |
| KSK 145*160.1*6.3 | RSK301450 |
| KSK 145*165.5*8.1 | RSK401450 |
| KSK 150*165.1*6.3 | RSK301500 |
| KSK 150*170.5*8.1 | RSK401500 |
| KSK 153*168.1*6.3 | RSK301530 |
| KSK 155*170.1*6.3 | RSK301550 |
| KSK 160*175.1*6.3 | RSK301600 |
| KSK 160*180.5*8.1 | RSK401600 |
| KSK 165*180.1*6.3 | RSK301650 |
| KSK 170*185.1*6.3 | RSK301700 |
| KSK 170*190.5*8.1 | RSK401700 |
| KSK 173*188.1*6.3 | RSK301730 |
| KSK 175*190.1*6.3 | RSK301750 |
| KSK 180*195.1*6.3 | RSK301800 |
| KSK 180*200.5*8.1 | RSK401800 |
| KSK 185*200.1*6.3 | RSK301850 |
| KSK 185*205.5*8.1 | RSK401850 |
| KSK 190*205.1*6.3 | RSK301900 |
| KSK 190*210.5*8.1 | RSK401900 |
| KSK 195*210.1*6.3 | RSK301950 |
| KSK 200*215.1*6.3 | RSK302000 |
| KSK 200*220.5*8.1 | RSK402000 |
| KSK 205*225.5*8.1 | RSK402050 |
| KSK 210*230.5*8.1 | RSK402100 |
| KSK 211*231.5*8.1 | RSK402110 |
| KSK 212*232.5*8.1 | RSK402120 |
| KSK 215*235.5*8.1 | RSK402150 |
| KSK 220*240.5*8.1 | RSK402200 |
| KSK 225*245.5*8.1 | RSK402250 |
| KSK 230*245.1*6.3 | RSK302300 |
| KSK 230*250.5*8.1 | RSK402300 |
| KSK 235*255.5*8.1 | RSK402350 |
| KSK 240*260.5*8.1 | RSK402400 |
| KSK 245*265.5*8.1 | RSK402450 |
| KSK 250*270.5*8.1 | RSK402500 |
| KSK 260*284*8.1 | RSK802600 |
| KSK 265*289*8.1 | RSK802650 |
| KSK 270*290.5*8.1 | RSK402700 |
| KSK 270*294*8.1 | RSK802700 |
| KSK 275*299*8.1 | RSK802750 |
| KSK 280*304*8.1 | RSK802800 |
| KSK 285*309*8.1 | RSK802850 |
| KSK 290*314*8.1 | RSK802900 |
| KSK 295*319*8.1 | RSK802950 |
| KSK 300*320.5*8.1 | RSK403000 |
| KSK 300*324*8.1 | RSK803000 |
| KSK 310*334*8.1 | RSK803100 |
| KSK 320*344*8.1 | RSK803200 |
| KSK 330*354*8.1 | RSK803300 |
| KSK 340*364*8.1 | RSK803400 |
| KSK 350*370.5*8.1 | RSK403500 |
| KSK 350*374*8.1 | RSK803500 |
| KSK 360*384*8.1 | RSK803600 |
| KSK 365*389*8.1 | RSK803650 |
| KSK 370*394*8.1 | RSK803700 |
| KSK 375*399*8.1 | RSK803750 |
| KSK 380*404*8.1 | RSK803800 |
| KSK 390*414*8.1 | RSK803900 |
| KSK 400*424*8.1 | RSK804000 |
| KSK 410*434*8.1 | RSK804100 |
| KSK 420*444*8.1 | RSK804200 |
| KSK 430*454*8.1 | RSK804300 |
| KSK 435*459*8.1 | RSK804350 |
| KSK 440*464*8.1 | RSK804400 |
| KSK 450*474*8.1 | RSK804500 |
| KSK 460*484*8.1 | RSK804600 |
| KSK 470*494*8.1 | RSK804700 |
| KSK 480*504*8.1 | RSK804800 |
| KSK 485*509*8.1 | RSK804850 |
| KSK 490*514*8.1 | RSK804900 |
| KSK 500*524*8.1 | RSK805000 |
| KSK 510*534*8.1 | RSK805100 |
| KSK 520*544*8.1 | RSK805200 |
| KSK 525*549*8.1 | RSK805250 |
| KSK 530*554*8.1 | RSK805300 |
| KSK 540*564*8.1 | RSK805400 |
| KSK 550*574*8.1 | RSK805500 |
| KSK 560*584*8.1 | RSK805600 |
| KSK 570*594*8.1 | RSK805700 |
| KSK 580*604*8.1 | RSK805800 |
| KSK 585*609*8.1 | RSK805850 |
| KSK 590*614*8.1 | RSK805900 |
| KSK 600*624*8.1 | RSK806000 |
| KSK 610*634*8.1 | RSK806100 |
| KSK 620*644*8.1 | RSK806200 |
| KSK 630*654*8.1 | RSK806300 |
| KSK 640*664*8.1 | RSK806400 |
| KSK 650*677.3*9.5 | RSK506500 |
| KSK 656*683.3*9.5 | RSK506560 |
| KSK 660*687.3*9.5 | RSK506600 |
| KSK 680*707.3*9.5 | RSK506800 |
| KSK 685*712.3*9.5 | RSK506850 |
| KSK 700*724*8.1 | RSK807000 |
| KSK 700*727.3*9.5 | RSK507000 |
| KSK 710*737.3*9.5 | RSK507100 |
| KSK 730*757.3*9.5 | RSK507300 |
| KSK 760*787.3*9.5 | RSK507600 |
| KSK 765*792.3*9.5 | RSK507650 |
| KSK 780*807.3*9.5 | RSK507800 |
| KSK 790*817.3*9.5 | RSK507900 |
| KSK 800*827.3*9.5 | RSK508000 |
| KSK 810*837.3*9.5 | RSK508100 |
| KSK 820*847.3*9.5 | RSK508200 |
| KSK 830*857.3*9.5 | RSK508300 |
| KSK 850*877.3*9.5 | RSK508500 |
| KSK 870*897.3*9.5 | RSK508700 |
| KSK 880*907.3*9.5 | RSK508800 |
| KSK 885*912.3*9.5 | RSK508850 |
| KSK 890*917.3*9.5 | RSK508900 |
| KSK 930*957.3*9.5 | RSK509300 |
| KSK 955*982.3*9.5 | RSK509550 |
| KSK 1000*1038*13.8 | RSK6X1000 |
| KSK 1035*1073*13.8 | RSK6X1035 |
| KSK 1040*1067.3*9.5 | RSK5X1040 |
| KSK 1040*1078*13.8 | RSK6X1040 |
| KSK 1050*1077.3*9.5 | RSK5X1050 |
| KSK 1050*1088*13.8 | RSK6X1050 |
| KSK 1100*1138*13.8 | RSK6X1100 |
| KSK 1120*1147.3*9.5 | RSK5X1120 |
| KSK 1120*1158*13.8 | RSK6X1120 |
| KSK 1200*1227.3*9.5 | RSK5X1200 |
| KSK 1200*1238*13.8 | RSK6X1200 |
| KSK 1330*1368*13.8 | RSK6X1330 |
| KSK 1500*1538*13.8 | RSK6X1500 |
| KSK 1600*1638*13.8 | RSK6X1600 |
| KSK 2000*2038*13.8 | RSK6X2000 |
| KSK 2600*2638*13.8 | RSK6X2600 |
글라이드링(KCP, T054, T754): 외측에 테프론이 장착되고 내측에서 오링이 밀어주는 형태의 테프론 씰입니다. 오링과 함께 장착되어 고압과 저압, 고속과 저속,낮은 마찰계수를 요하는 곳등 여러분야에서 적용될 수 있습니다. 테프론이 닳은 경우에도 함께 장착되는 오링이 테프론을 밀어주어 오랜시간 사용 가능합니다.
단동용으로 사용하게끔 단이 져있는 외경용 스텝씰을 사용하기도 합니다.
| 품목명 외경*내경*두께 | 부삭(트렐레보그) 품번 |
| KCP 8*3.1*2.2 | PT0000080 |
| KCP 10*5.1*2.2 | PT0000100 |
| KCP 12*7.1*2.2 | PT0000120 |
| KCP 14*9.1*2.2 | PT0000140 |
| KCP 15*7.5*3.2 | PT0100150 |
| KCP 15.8*10.9*2.2 | PT0000158 |
| KCP 16*11.1*2.2 | PT0000160 |
| KCP 16*8.5*3.2 | PT0100160 |
| KCP 18*13.1*2.2 | PT0000180 |
| KCP 18*10.5*3.2 | PT0100180 |
| KCP 19.05*11.5*3.2 | PT0100190 |
| KCP 20*15.1*2.2 | PT0000200 |
| KCP 20*12.5*3.2 | PT0100200 |
| KCP 21*13.5*3.2 | PT0100210 |
| KCP 22*17.1*2.2 | PT0000220 |
| KCP 22*14.5*3.2 | PT0100220 |
| KCP 24*16.5*3.2 | PT0100240 |
| KCP 25*20.1*2.2 | PT0000250 |
| KCP 25*17.5*3.2 | PT0100250 |
| KCP 25*14*4.2 | PT0200250 |
| KCP 25.4*20.5*2.2 | PT0000254 |
| KCP 28*20.5*3.2 | PT0100280 |
| KCP 30*22.5*3.2 | PT0100300 |
| KCP 32*27.1*2.2 | PT0000320 |
| KCP 32*24.5*3.2 | PT0100320 |
| KCP 32*21*4.2 | PT0200320 |
| KCP 35*27.5*3.2 | PT0100350 |
| KCP 35*24*4.2 | PT0200350 |
| KCP 36*28.5*3.2 | PT0100360 |
| KCP 38*30.5*3.2 | PT0100380 |
| KCP 40*32.5*3.2 | PT0100400 |
| KCP 40*29*4.2 | PT0200400 |
| KCP 42*31*4.2 | PT0200420 |
| KCP 44.45*36.95*3.2 | PT0100444 |
| KCP 45*34*4.2 | PT0200450 |
| KCP 48*37*4.2 | PT0200480 |
| KCP 50*42.5*3.2 | PT0100500 |
| KCP 50*39*4.2 | PT0200500 |
| KCP 50*34.5*6.3 | PT0300500 |
| KCP 50.8*43.3*3.2 | PT0100508 |
| KCP 50.8*39.8*4.2 | PT0200508 |
| KCP 52*41*4.2 | PT0200520 |
| KCP 53*42*4.2 | PT0200530 |
| KCP 55*44*4.2 | PT0200550 |
| KCP 57*46*4.2 | PT0200570 |
| KCP 58*47*4.2 | PT0200580 |
| KCP 60*49*4.2 | PT0200600 |
| KCP 62*51*4.2 | PT0200620 |
| KCP 63*52*4.2 | PT0200630 |
| KCP 63*47.5*6.3 | PT0300630 |
| KCP 65*54*4.2 | PT0200650 |
| KCP 68*57*4.2 | PT0200680 |
| KCP 70*59*4.2 | PT0200700 |
| KCP 70*54.5*6.3 | PT0300700 |
| KCP 75*64*4.2 | PT0200750 |
| KCP 75*59.5*6.3 | PT0300750 |
| KCP 80*69*4.2 | PT0200800 |
| KCP 80*64.5*6.3 | PT0300800 |
| KCP 80*59*8.1 | PT0400800 |
| KCP 82.5*67*6.3 | PT0300825 |
| KCP 85*69.5*6.3 | PT0300850 |
| KCP 85*64*8.1 | PT0400850 |
| KCP 90*79*4.2 | PT0200900 |
| KCP 90*74.5*6.3 | PT0300900 |
| KCP 90*69*8.1 | PT0400900 |
| KCP 95*84*4.2 | PT0200950 |
| KCP 95*79.5*6.3 | PT0300950 |
| KCP 95*74*8.1 | PT0400950 |
| KCP 100*89*4.2 | PT0201000 |
| KCP 100*84.5*6.3 | PT0301000 |
| KCP 100*79*8.1 | PT0401000 |
| KCP 101.6*86.1*6.3 | PT0301016 |
| KCP 105*94*4.2 | PT0201050 |
| KCP 105*89.5*6.3 | PT0301050 |
| KCP 108*92.5*6.3 | PT0301080 |
| KCP 110*99*4.2 | PT0201100 |
| KCP 110*94.5*6.3 | PT0301100 |
| KCP 110*89*8.1 | PT0401100 |
| KCP 115*99.5*6.3 | PT0301150 |
| KCP 120*109*4.2 | PT0201200 |
| KCP 120*104.5*6.3 | PT0301200 |
| KCP 120*99*8.1 | PT0401200 |
| KCP 125*114*4.2 | PT0201250 |
| KCP 125*109.5*6.3 | PT0301250 |
| KCP 125*104*8.1 | PT0401250 |
| KCP 127*111.5*6.3 | PT0301270 |
| KCP 130*114.5*6.3 | PT0301300 |
| KCP 130*109*8.1 | PT0401300 |
| KCP 132*121*4.2 | PT0201320 |
| KCP 135*114*8.1 | PT0401350 |
| KCP 140*124.5*6.3 | PT0301400 |
| KCP 140*119*8.1 | PT0401400 |
| KCP 145*129.5*6.3 | PT0301450 |
| KCP 145*124*8.1 | PT0401450 |
| KCP 150*134.5*6.3 | PT0301500 |
| KCP 150*129*8.1 | PT0401500 |
| KCP 155*134*8.1 | PT0401550 |
| KCP 160*144.5*6.3 | PT0301600 |
| KCP 160*139*8.1 | PT0401600 |
| KCP 165*144*8.1 | PT0401650 |
| KCP 170*149*8.1 | PT0401700 |
| KCP 175*154*8.1 | PT0401750 |
| KCP 180*164.5*6.3 | PT0301800 |
| KCP 180*159*8.1 | PT0401800 |
| KCP 190*169*8.1 | PT0401900 |
| KCP 194*178.5*6.3 | PT0301940 |
| KCP 200*184.5*6.3 | PT0302000 |
| KCP 200*179*8.1 | PT0402000 |
| KCP 205*184*8.1 | PT0402050 |
| KCP 210*189*8.1 | PT0402100 |
| KCP 215*194*8.1 | PT0402150 |
| KCP 220*199*8.1 | PT0402200 |
| KCP 230*214.5*6.3 | PT0302300 |
| KCP 230*209*8.1 | PT0402300 |
| KCP 240*219*8.1 | PT0402400 |
| KCP 250*234.5*6.3 | PT0302500 |
| KCP 250*229*8.1 | PT0402500 |
| KCP 250*225.5*8.1 | PT0802500 |
| KCP 254*233*8.1 | PT0402540 |
| KCP 260*239*8.1 | PT0402600 |
| KCP 265*244*8.1 | PT0402650 |
| KCP 268*247*8.1 | PT0402680 |
| KCP 270*249*8.1 | PT0402700 |
| KCP 280*259*8.1 | PT0402800 |
| KCP 290*269*8.1 | PT0402900 |
| KCP 300*279*8.1 | PT0403000 |
| KCP 300*275.5*8.1 | PT0803000 |
| KCP 304.8*283.8*8.1 | PT0403048 |
| KCP 310*289*8.1 | PT0403100 |
| KCP 320*299*8.1 | PT0403200 |
| KCP 320*295.5*8.1 | PT0803200 |
| KCP 330*305.5*8.1 | PT0803300 |
| KCP 340*315.5*8.1 | PT0803400 |
| KCP 350*325.5*8.1 | PT0803500 |
| KCP 360*335.5*8.1 | PT0803600 |
| KCP 370*345.5*8.1 | PT0803700 |
| KCP 380*355.5*8.1 | PT0803800 |
| KCP 400*375.5*8.1 | PT0804000 |
| KCP 420*395.5*8.1 | PT0804200 |
| KCP 430*405.5*8.1 | PT0804300 |
| KCP 440*415.5*8.1 | PT0804400 |
| KCP 450*425.5*8.1 | PT0804500 |
| KCP 460*435.5*8.1 | PT0804600 |
| KCP 480*455.5*8.1 | PT0804800 |
| KCP 500*475.5*8.1 | PT0805000 |
| KCP 555*530.5*8.1 | PT0805550 |
| KCP 600*575.5*8.1 | PT0806000 |
| KCP 640*615.5*8.1 | PT0806400 |
| KCP 660*635.5*8.1 | PT0806600 |
| KCP 700*672*9.5 | PT0507000 |
| KCP 710*682*9.5 | PT0507100 |
| KCP 740*712*9.5 | PT0507400 |
| KCP 780*752*9.5 | PT0507800 |
| KCP 800*772*9.5 | PT0508000 |
| KCP 900*872*9.5 | PT0509000 |
| KCP 1000*972*9.5 | PT05X1000 |
| KCP 1000*962*13.8 | PT06X1000 |
| KCP 1050*1022*9.5 | PT05X1050 |
| KCP 1065*1027*13.8 | PT06X1065 |
| KCP 1070*1032*13.8 | PT06X1070 |
| KCP 1200*1172*9.5 | PT05X1200 |
| KCP 1200*1162*13.8 | PT06X1200 |
| KCP 1225*1187*13.8 | PT06X1225 |
| KCP 1500*1462*13.8 | PT06X1500 |
| KCP 2000*1962*13.8 | PT06X2000 |
| KCP 2700*2662*13.8 | PT06X2700 |
| 품목명 외경*내경*두께 | 부삭(트렐레보그) 품번 |
| KCP 8*3.1*2.2 | PG4400080 |
| KCP 10*5.1*2.2 | PG4400100 |
| KCP 12*7.1*2.2 | PG4400120 |
| KCP 14*9.1*2.2 | PG4400140 |
| KCP 15*7.5*3.2 | PG4400150 |
| KCP 16*11.1*2.2 | PG4600160 |
| KCP 16*8.5*3.2 | PG4400160 |
| KCP 18*13.1*2.2 | PG4600180 |
| KCP 18*10.5*3.2 | PG4400180 |
| KCP 19.05*11.5*3.2 | PG4400190 |
| KCP 20*15.1*2.2 | PG4600200 |
| KCP 20*12.5*3.2 | PG4400200 |
| KCP 21*13.5*3.2 | PG4400210 |
| KCP 22*17.1*2.2 | PG4600220 |
| KCP 22*14.5*3.2 | PG4400220 |
| KCP 24*16.5*3.2 | PG4400240 |
| KCP 25*20.1*2.2 | PG4600250 |
| KCP 25*17.5*3.2 | PG4400250 |
| KCP 25*14*4.2 | PG4200250 |
| KCP 25.4*20.5*2.2 | PG4600254 |
| KCP 28*20.5*3.2 | PG4400280 |
| KCP 30*25.1*2.2 | PG4600300 |
| KCP 30*22.5*3.2 | PG4400300 |
| KCP 32*27.1*2.2 | PG4600320 |
| KCP 32*24.5*3.2 | PG4400320 |
| KCP 32*21*4.2 | PG4200320 |
| KCP 34*29.1*2.2 | PG4600340 |
| KCP 35*27.5*3.2 | PG4400350 |
| KCP 35*24*4.2 | PG4200350 |
| KCP 36*28.5*3.2 | PG4400360 |
| KCP 38*33.1*2.2 | PG4600380 |
| KCP 38*30.5*3.2 | PG4400380 |
| KCP 40*32.5*3.2 | PG4600400 |
| KCP 40*29*4.2 | PG4400400 |
| KCP 42*31*4.2 | PG4400420 |
| KCP 44.45*36.9*3.2 | PG4600444 |
| KCP 45*34*4.2 | PG4400450 |
| KCP 48*37*4.2 | PG4400480 |
| KCP 50*42.5*3.2 | PG4600500 |
| KCP 50*39*4.2 | PG4400500 |
| KCP 50*34.5*6.3 | PG4200500 |
| KCP 50.8*43.3*3.2 | PG4600508 |
| KCP 50.8*39.8*4.2 | PG4400508 |
| KCP 52*41*4.2 | PG4400520 |
| KCP 53*42*4.2 | PG4400530 |
| KCP 55*44*4.2 | PG4400550 |
| KCP 57*46*4.2 | PG4400570 |
| KCP 58*47*4.2 | PG4400580 |
| KCP 60*49*4.2 | PG4400600 |
| KCP 62*51*4.2 | PG4400620 |
| KCP 63*52*4.2 | PG4400630 |
| KCP 63*47.5*6.3 | PG4200630 |
| KCP 65*54*4.2 | PG4400650 |
| KCP 68*57*4.2 | PG4400680 |
| KCP 70*62.5*3.2 | PG4600700 |
| KCP 70*59*4.2 | PG4400700 |
| KCP 70*54.5*6.3 | PG4200700 |
| KCP 75*64*4.2 | PG4400750 |
| KCP 75*59.5*6.3 | PG4200750 |
| KCP 80*69*4.2 | PG4600800 |
| KCP 80*64.5*6.3 | PG4400800 |
| KCP 80*59*8.1 | PG4200800 |
| KCP 82.5*67*6.3 | PG4400825 |
| KCP 85*69.5*6.3 | PG4400850 |
| KCP 85*64*8.1 | PG4200850 |
| KCP 90*79*4.2 | PG4600900 |
| KCP 90*74.5*6.3 | PG4400900 |
| KCP 90*69*8.1 | PG4200900 |
| KCP 95*84*4.2 | PG4600950 |
| KCP 95*79.5*6.3 | PG4400950 |
| KCP 95*74*8.1 | PG4200950 |
| KCP 100*89*4.2 | PG4601000 |
| KCP 100*84.5*6.3 | PG4401000 |
| KCP 100*79*8.1 | PG4201000 |
| KCP 101.6*86.1*6.3 | PG4401016 |
| KCP 105*94*4.2 | PG4601050 |
| KCP 105*89.5*6.3 | PG4401050 |
| KCP 108*92.5*6.3 | PG4401080 |
| KCP 110*99*4.2 | PG4601100 |
| KCP 110*94.5*6.3 | PG4401100 |
| KCP 110*89*8.1 | PG4201100 |
| KCP 115*99.5*6.3 | PG4401150 |
| KCP 120*109*4.2 | PG4601200 |
| KCP 120*104.5*6.3 | PG4401200 |
| KCP 120*99*8.1 | PG4201200 |
| KCP 125*114*4.2 | PG4601250 |
| KCP 125*109.5*6.3 | PG4401250 |
| KCP 125*104*8.1 | PG4201250 |
| KCP 127*111.5*6.3 | PG4401270 |
| KCP 130*114.5*6.3 | PG4401300 |
| KCP 130*105.5*8.1 | PG4201300 |
| KCP 132*121*4.2 | PG4601320 |
| KCP 135*114*8.1 | PG4401350 |
| KCP 140*124.5*6.3 | PG4601400 |
| KCP 140*119*8.1 | PG4401400 |
| KCP 145*129.5*6.3 | PG4601450 |
| KCP 145*124*8.1 | PG4401450 |
| KCP 150*134.5*6.3 | PG4601500 |
| KCP 150*129*8.1 | PG4401500 |
| KCP 155*134*8.1 | PG4401550 |
| KCP 160*144.5*6.3 | PG4601600 |
| KCP 160*139*8.1 | PG4401600 |
| KCP 165*144*8.1 | PG4401650 |
| KCP 170*149*8.1 | PG4401700 |
| KCP 175*154*8.1 | PG4401750 |
| KCP 180*164.5*6.3 | PG4601800 |
| KCP 180*159*8.1 | PG4401800 |
| KCP 190*169*8.1 | PG4401900 |
| KCP 194*178.5*6.3 | PG4601940 |
| KCP 200*184.5*6.3 | PG4602000 |
| KCP 200*179*8.1 | PG4402000 |
| KCP 205*184*8.1 | PG4402050 |
| KCP 210*189*8.1 | PG4402100 |
| KCP 215*194*8.1 | PG4402150 |
| KCP 220*199*8.1 | PG4402200 |
| KCP 230*214.5*6.3 | PG4602300 |
| KCP 230*209*8.1 | PG4402300 |
| KCP 240*219*8.1 | PG4402400 |
| KCP 250*234.5*6.3 | PG4602500 |
| KCP 250*229*8.1 | PG4402500 |
| KCP 250*225.5*8.1 | PG4202500 |
| KCP 254*233*8.1 | PG4402540 |
| KCP 260*239*8.1 | PG4402600 |
| KCP 265*244*8.1 | PG4402650 |
| KCP 268*247*8.1 | PG4402680 |
| KCP 270*249*8.1 | PG4402700 |
| KCP 280*259*8.1 | PG4402800 |
| KCP 290*269*8.1 | PG4402900 |
| KCP 300*279*8.1 | PG4403000 |
| KCP 300*275.5*8.1 | PG4203000 |
| KCP 304.8*283.8*8.1 | PG4403048 |
| KCP 310*289*8.1 | PG4403100 |
| KCP 320*299*8.1 | PG4403200 |
| KCP 320*295.5*8.1 | PG4203200 |
| KCP 330*305.5*8.1 | PG4403300 |
| KCP 340*315.5*8.1 | PG4403400 |
| KCP 350*325.5*8.1 | PG4403500 |
| KCP 360*335.5*8.1 | PG4403600 |
| KCP 370*345.5*8.1 | PG4403700 |
| KCP 380*355.5*8.1 | PG4403800 |
| KCP 400*375.5*8.1 | PG4404000 |
| KCP 420*395.5*8.1 | PG4404200 |
| KCP 430*405.5*8.1 | PG4404300 |
| KCP 440*415.5*8.1 | PG4404400 |
| KCP 450*425.5*8.1 | PG4404500 |
| KCP 460*435.5*8.1 | PG4404600 |
| KCP 480*455.5*8.1 | PG4404800 |
| KCP 500*475.5*8.1 | PG4405000 |
| KCP 555*530.5*8.1 | PG4405550 |
| KCP 600*575.5*8.1 | PG4406000 |
| KCP 640*615.5*8.1 | PG4406400 |
| KCP 660*635.5*8.1 | PG4406600 |
| KCP 700*672*9.5 | PG4407000 |
| KCP 710*682*9.5 | PG4407100 |
| KCP 740*712*9.5 | PG4407400 |
| KCP 780*752*9.5 | PG4407800 |
| KCP 800*772*9.5 | PG4408000 |
| KCP 900*872*9.5 | PG4409000 |
| KCP 1000*972*9.5 | PG46X1000 |
| KCP 1000*962*13.8 | PG44X1000 |
| KCP 1050*1022*9.5 | PG46X1050 |
| KCP 1065*1027*13.8 | PG44X1065 |
| KCP 1070*1032*13.8 | PG44X1070 |
| KCP 1200*1172*9.5 | PG46X1200 |
| KCP 1200*1162*13.8 | PG44X1200 |
| KCP 1225*1187*13.8 | PG44X1225 |
| KCP 1500*1462*13.8 | PG44X1500 |
| KCP 2000*1962*13.8 | PG44X2000 |
| KCP 2700*2662*13.8 | PG44X2700 |
| 품목명 외경*내경*두께 | 부삭(트렐레보그) 품번 |
| KSK 9*4.1*2.2(외경용) | PSK000090 |
| KSK 10*5.1*2.2(외경용) | PSK000100 |
| KSK 12*7.1*2.2(외경용) | PSK000120 |
| KSK 14*9.1*2.2(외경용) | PSK000140 |
| KSK 14.5*9.6*2.2(외경용) | PSK000145 |
| KSK 15*7.7*3.2(외경용) | PSK100150 |
| KSK 15*10.1*2.2(외경용) | PSK000150 |
| KSK 16*11.1*2.2(외경용) | PSK000160 |
| KSK 18*10.7*3.2(외경용) | PSK100180 |
| KSK 20*12.7*3.2(외경용) | PSK100200 |
| KSK 20*15.1*2.2(외경용) | PSK000200 |
| KSK 22*14.7*3.2(외경용) | PSK100220 |
| KSK 25*14.3*4.2(외경용) | PSK200250 |
| KSK 25*17.7*3.2(외경용) | PSK100250 |
| KSK 28*17.3*4.2(외경용) | PSK200280 |
| KSK 30*19.3*4.2(외경용) | PSK200300 |
| KSK 30*22.7*3.2(외경용) | PSK100300 |
| KSK 32*21.3*4.2(외경용) | PSK200320 |
| KSK 32*24.7*3.2(외경용) | PSK100320 |
| KSK 35*24.3*4.2(외경용) | PSK200350 |
| KSK 40*29.3*4.2(외경용) | PSK200400 |
| KSK 40*32.7*3.2(외경용) | PSK100400 |
| KSK 42*31.3*4.2(외경용) | PSK200420 |
| KSK 45*34.3*4.2(외경용) | PSK200450 |
| KSK 48*37.3*4.2(외경용) | PSK200480 |
| KSK 50*34.9*6.3(외경용) | PSK300500 |
| KSK 50*39.3*4.2(외경용) | PSK200500 |
| KSK 52*41.3*4.2(외경용) | PSK200520 |
| KSK 55*44.3*4.2(외경용) | PSK200550 |
| KSK 60*44.9*6.3(외경용) | PSK300600 |
| KSK 63*47.9*6.3(외경용) | PSK300630 |
| KSK 63*52.3*4.2(외경용) | PSK200630 |
| KSK 65*49.9*6.3(외경용) | PSK300650 |
| KSK 70*54.9*6.3(외경용) | PSK300700 |
| KSK 70*59.3*4.2(외경용) | PSK200700 |
| KSK 75*59.9*6.3(외경용) | PSK300750 |
| KSK 80*59.5*8.1(외경용) | PSK400800 |
| KSK 80*64.9*6.3(외경용) | PSK300800 |
| KSK 85*64.5*8.1(외경용) | PSK400850 |
| KSK 85*69.9*6.3(외경용) | PSK300850 |
| KSK 90*69.5*8.1(외경용) | PSK400900 |
| KSK 90*74.9*6.3(외경용) | PSK300900 |
| KSK 95*74.5*8.1(외경용) | PSK400950 |
| KSK 95*79.9*6.3(외경용) | PSK300950 |
| KSK 100*79.5*8.1(외경용) | PSK401000 |
| KSK 100*84.9*6.3(외경용) | PSK301000 |
| KSK 105*84.5*8.1(외경용) | PSK401050 |
| KSK 105*89.9*6.3(외경용) | PSK301050 |
| KSK 106*90.9*6.3(외경용) | PSK301060 |
| KSK 110*89.5*8.1(외경용) | PSK401100 |
| KSK 110*94.9*6.3(외경용) | PSK301100 |
| KSK 115*94.5*8.1(외경용) | PSK401150 |
| KSK 115*99.9*6.3(외경용) | PSK301150 |
| KSK 120*99.5*8.1(외경용) | PSK401200 |
| KSK 120*104.9*6.3(외경용) | PSK301200 |
| KSK 125*104.5*8.1(외경용) | PSK401250 |
| KSK 125*109.9*6.3(외경용) | PSK301250 |
| KSK 130*109.5*8.1(외경용) | PSK401300 |
| KSK 130*114.9*6.3(외경용) | PSK301300 |
| KSK 135*114.5*8.1(외경용) | PSK401350 |
| KSK 140*119.5*8.1(외경용) | PSK401400 |
| KSK 145*124.5*8.1(외경용) | PSK401450 |
| KSK 150*129.5*8.1(외경용) | PSK401500 |
| KSK 155*139.9*6.3(외경용) | PSK301550 |
| KSK 160*139.5*8.1(외경용) | PSK401600 |
| KSK 160*144.9*6.3(외경용) | PSK301600 |
| KSK 165*144.5*8.1(외경용) | PSK401650 |
| KSK 165*149.9*6.3(외경용) | PSK301650 |
| KSK 170*149.5*8.1(외경용) | PSK401700 |
| KSK 175*159.9*6.3(외경용) | PSK301750 |
| KSK 180*159.5*8.1(외경용) | PSK401800 |
| KSK 180*164.9*6.3(외경용) | PSK301800 |
| KSK 190*169.5*8.1(외경용) | PSK401900 |
| KSK 190*174.9*6.3(외경용) | PSK301900 |
| KSK 200*179.5*8.1(외경용) | PSK402000 |
| KSK 200*184.9*6.3(외경용) | PSK302000 |
| KSK 205*184.5*8.1(외경용) | PSK402050 |
| KSK 210*189.5*8.1(외경용) | PSK402100 |
| KSK 220*199.5*8.1(외경용) | PSK402200 |
| KSK 220*204.9*6.3(외경용) | PSK302200 |
| KSK 230*209.5*8.1(외경용) | PSK402300 |
| KSK 240*219.5*8.1(외경용) | PSK402400 |
| KSK 250*226*8.1(외경용) | PSK802500 |
| KSK 250*229.5*8.1(외경용) | PSK402500 |
| KSK 260*236*8.1(외경용) | PSK802600 |
| KSK 270*246*8.1(외경용) | PSK802700 |
| KSK 280*256*8.1(외경용) | PSK802800 |
| KSK 300*276*8.1(외경용) | PSK803000 |
| KSK 306*285.5*8.1(외경용) | PSK403060 |
| KSK 310*286*8.1(외경용) | PSK803100 |
| KSK 320*296*8.1(외경용) | PSK803200 |
| KSK 320*299.5*8.1(외경용) | PSK403200 |
| KSK 330*306*8.1(외경용) | PSK803300 |
| KSK 340*316*8.1(외경용) | PSK803400 |
| KSK 345*324.5*8.1(외경용) | PSK403450 |
| KSK 350*326*8.1(외경용) | PSK803500 |
| KSK 360*336*8.1(외경용) | PSK803600 |
| KSK 370*346*8.1(외경용) | PSK803700 |
| KSK 380*356*8.1(외경용) | PSK803800 |
| KSK 400*376*8.1(외경용) | PSK804000 |
| KSK 420*396*8.1(외경용) | PSK804200 |
| KSK 430*406*8.1(외경용) | PSK804300 |
| KSK 440*416*8.1(외경용) | PSK804400 |
| KSK 450*426*8.1(외경용) | PSK804500 |
| KSK 480*456*8.1(외경용) | PSK804800 |
| KSK 500*476*8.1(외경용) | PSK805000 |
| KSK 520*499.5*8.1(외경용) | PSK405200 |
| KSK 540*516*8.1(외경용) | PSK805400 |
| KSK 600*576*8.1(외경용) | PSK806000 |
| KSK 650*626*8.1(외경용) | PSK806500 |
| KSK 700*672.7*9.5(외경용) | PSK507000 |
| KSK 800*772.7*9.5(외경용) | PSK508000 |
| KSK 860*832.7*9.5(외경용) | PSK508600 |
| KSK 900*872.7*9.5(외경용) | PSK509000 |
| KSK 920*892.7*9.5(외경용) | PSK509200 |
| KSK 1,000.0*962*13.8(외경용) | PSK6X1000 |
| KSK 1,000.0*972.7*9.5(외경용) | PSK5X1000 |
| KSK 1,200.0*1,162.0*13.8(외경용) | PSK6X1200 |
| KSK 1,200.0*1,172.7*9.5(외경용) | PSK5X1200 |
| KSK 1,500.0*1,462.0*13.8(외경용) | PSK6X1500 |
| KSK 2,000.0*1,962.0*13.8(외경용) | PSK6X2000 |
| KSK 2,700.0*2,662.0*13.8(외경용) | PSK6X2700 |
찾고자 하는 값을 입력 후 Enter 키를 치면 검색 됩니다
| TYPE | 내경(d) | 외경(D) | 두깨(H) | 비고 |
|---|
| 스팩정보를 불러오는 중입니다 |
